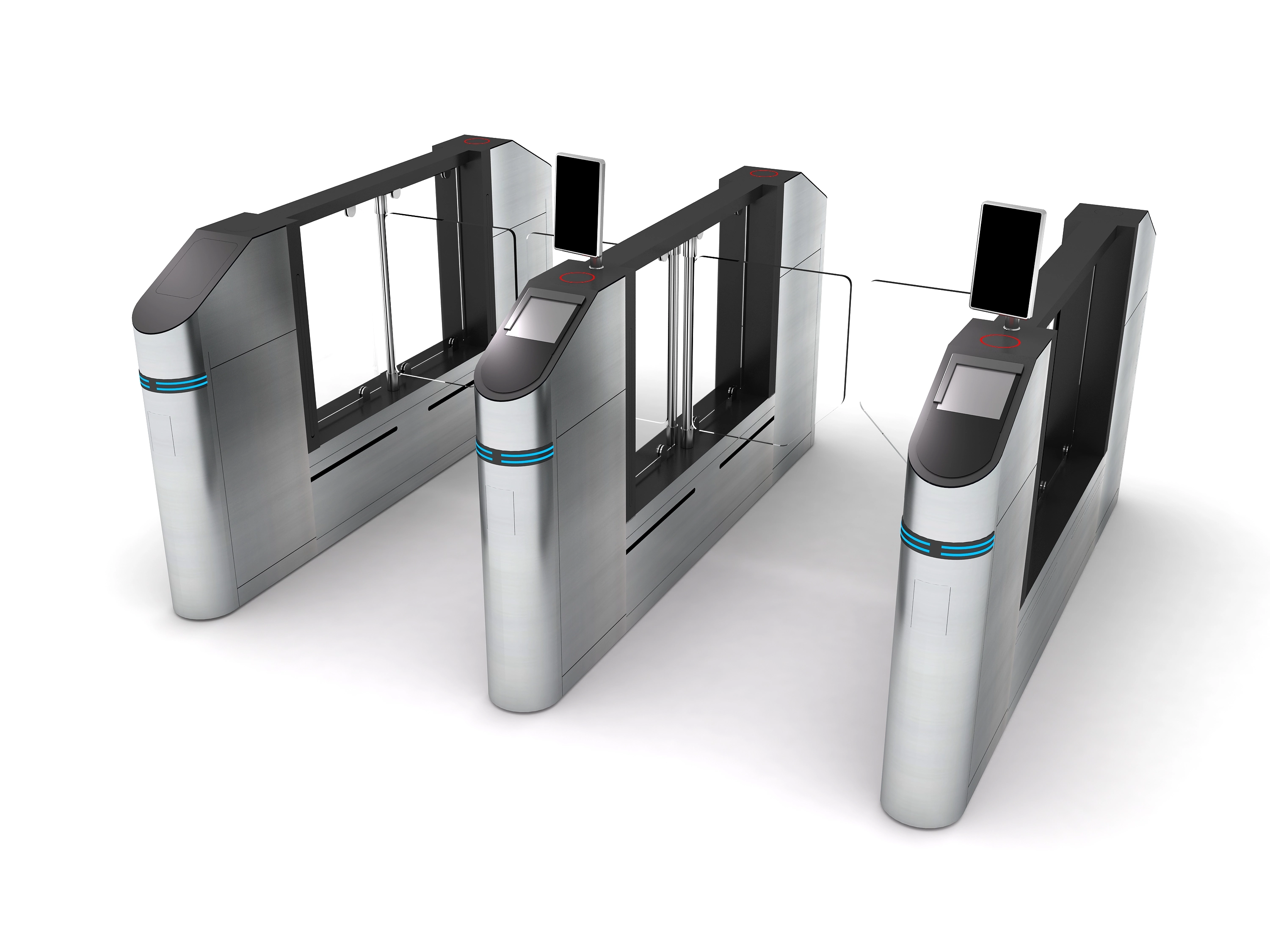

Extended Speed Gate Access Control Turnstile

The Speed Gate Access Control Turnstile YD-R819ST is specifically designed for modern urban management and services, integrating state-of-the-art IoT (Internet of Things) technology and data analysis. Through an intelligent management platform, it offers remote monitoring, data analytics, abnormal behavior alerts, and other functions, providing managers with comprehensive and real-time access control information.

This high-performance swing gate system not only improves access speed but also enhances the overall intelligence level of venues. It is suitable for schools, hospitals, shopping centers, office buildings, stadiums, and various other high-traffic scenarios.

High-Performance Servo Motor with Patented Clutch Mechanism

Driven by a high-precision industrial servo motor with an integrated patented clutch mechanism. The system guarantees whisper-quiet, smooth, and ultra-fast gate response times of just 2-3 second opening/closing cycles, perfectly optimizing pedestrian throughput in high-density environments.

9-Pair Infrared Sensor Array for Anti-Tailgating & Anti-Pinch

Features a comprehensive sensor array containing 9 pairs of infrared sensors that monitor the pedestrian lane in real time. The system delivers multiple layers of intelligent detection:

Anti-tailgating: Unauthorized attempts to follow are immediately triggered by audible and visual alarms.

Anti-pinch: If an obstacle is detected during closure, the swing arms instantly halt and reverse to prevent injury.

Anti-collision: Before receiving an open signal, the gate locks automatically to prevent forced entry.

Numerical Control Coder for Precision Operation

Equipped with a high-precision numerical control coder that ensures accurate and efficient gate operation. This advanced positioning technology enables consistent, reliable swing arm movement with minimal mechanical deviation, significantly enhancing the overall stability and service life of the turnstile system.

Multiple Access Integration & Versatile Compatibility

Offers seamless integration with a wide range of third-party systems, including:

Access control systems (RFID card swiping, fingerprint, and facial recognition)

Ticket management systems (scenic spots, stadiums, theaters, bus stations)

Biometric recognition systems

ESD (Electrostatic Discharge) testing systems

Consumption and dining management systems

Intelligent Alarm & Safety Mechanisms

Forced Entry Alarm: When swing arms are pushed illegally, an alarm is triggered automatically, and the arms lock.

Directional Anti-Passback: The gate locks when someone enters the passage illegally, tailgates, or breaks through in the negative direction.

Abnormal Behavior Alerts: Any unauthorized intrusion, reverse traffic movement, or mechanical tampering triggers heavy-duty audio-visual alarms.

Automatic Reset & Fail-Safe Fire Mode

Time-Out Reset: After card swiping, access is denied if not used within 10 seconds.

Power-Off Auto-Open: When power is off, the gate opens automatically within 1-60 seconds (configurable) for safe evacuation.

Fire Alarm Linkage: Equipped with a standard fire alarm input interface. Upon receiving a fire alarm signal, the gate opens automatically without conditions.

User-Friendly Operation & Directional Guidance

Main Control Board Adjustment: Turnstile working conditions are easily adjustable via the main control board button.

Direction Arrow Plate: Large, high-visibility direction arrow plates clearly indicate passage status.

Infrared Restoration: Smart infrared induction ensures smooth restoration and anti-pinch protection.

Premium 304 Stainless Steel & Acrylic Construction

Crafted from robust 304 stainless steel featuring superior rust-proof and corrosion-resistant properties, complemented by scratch-resistant, high-visibility acrylic swing arms. The chassis has a modern look that enhances corporate branding and is resistant to dust and high-humidity environments.

Robust Export-Ready Packaging

To ensure absolute structural integrity during international transit, each speed gate system undergoes a rigorous multi-stage packing protocol: first wrapped in protective film and secondary pearl cotton cushioning, then secured into neutral thick cardboard inner boxes, and finally anchored inside robust, export-grade reinforced wooden casings.

(Dimensions in mm)
