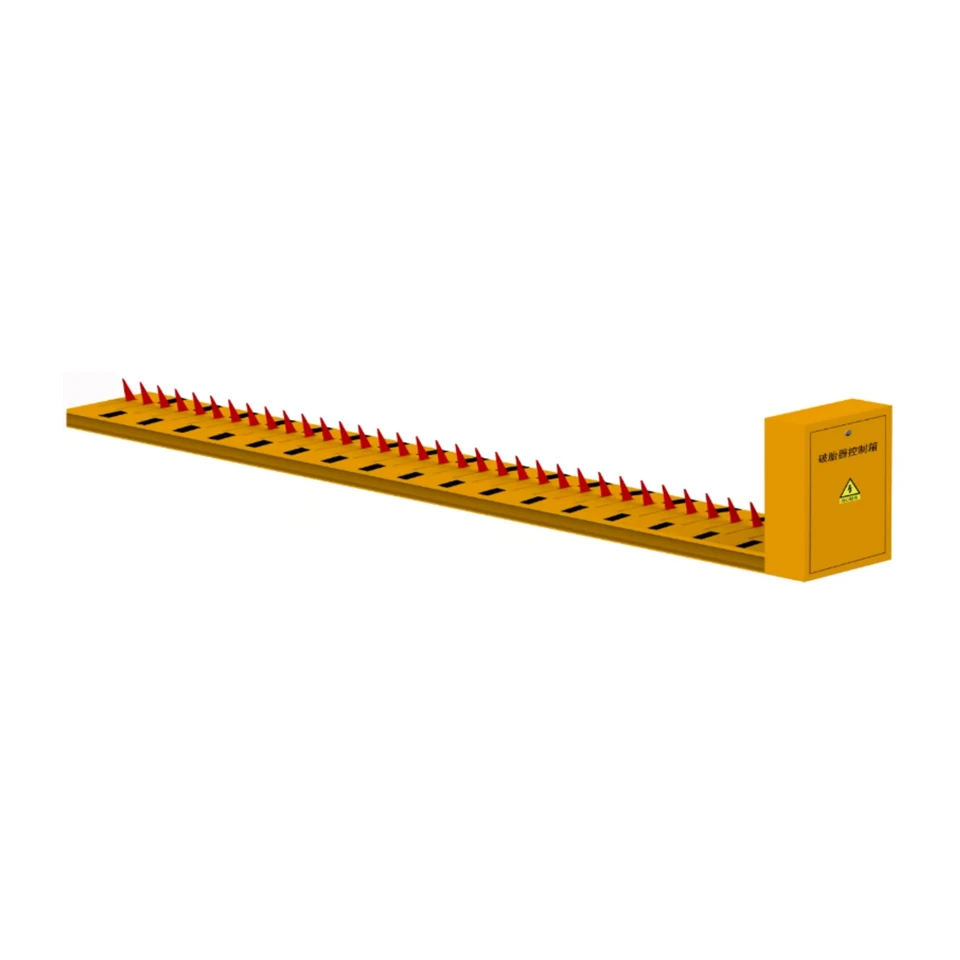

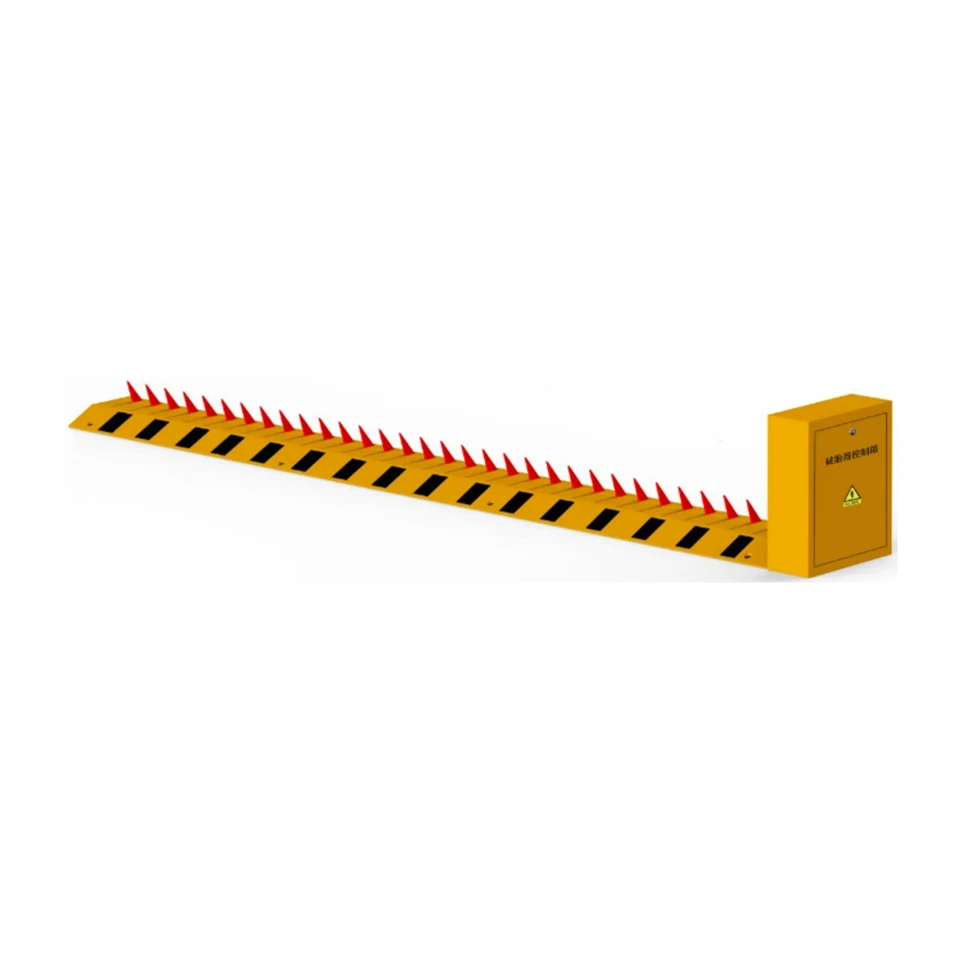

Reinforced Carbon Steel Interception Barrier

Rapid Interception Response (1-2s Lifting) – Features puncture blades (55mm height, 10mm thickness) with a lifting speed of 1-2 seconds, helping to puncture tires and stop unauthorized vehicles in emergencies quickly.

Embedded / Surface‑Mount Flexible Deployment – Offers both embedded and surface‑mount installation options. The body length is customizable from 1 to 6 meters, meeting security needs for various road conditions and civil engineering requirements.

10‑Ton Practical Protection – Built with Q235 carbon steel and equipped with a 10mm thickened panel, the robust structure is capable of withstanding the passage of 10-ton class vehicles, meeting the control demands of common security scenarios.

High‑Visibility Yellow & Black Coating – Features a steel structure, metal primer, combined with acrylic metallic paint. The yellow‑black color scheme and reflective paper offer good anti‑corrosion and nighttime warning effects.

Wide‑Temperature All‑Weather Operation – Offers good environmental adaptability, supporting stable operation in temperatures ranging from -40℃ to +70℃, suitable for severe cold, heat, and other climate conditions.

Mechanical & Structural Specifications

SKU	YD-P808
Material	Q235 carbon steel
Spike Blade Height	55 mm
Spike Blade Thickness	10 mm
Color	Yellow and black (paint + reflective sheeting)
Load Capacity	Withstands the passage of container trucks up to 10 tons
Surface Treatment	Steel structure, metal primer + acrylic metal paint
Unit Dimensions (Body)	Width 500 mm × Height 70 mm (excluding spikes); Length customizable from 1 to 6 meters
Panel Thickness	10 mm
Panel Material	Q235 carbon steel
Power Supply	220V AC
System Power	150W
Operating Temperature Range	-40°C to +70°C
Control Range	≤ 50 meters
Deployment / Retraction Speed	1–2 seconds

Proprietary Electromechanical Control & Drive Unit

Proprietary Control System – Features an independently developed and programmed control system. Reliable logic helps ensure stable response and operation of the tire killer in various security scenarios.

Safe Low‑Voltage Control – Main power supply 220V, control voltage 12V (safe low voltage). While ensuring driving capability, it helps improve safety during equipment operation and routine maintenance.

Drive Mechanism & Electrical Parameters

SKU	YD-P808-K
Control System	In-house developed proprietary system
Operating Voltage	220V AC
Control Voltage	12V DC
External Dimensions	500 mm × 200 mm × 700 mm
