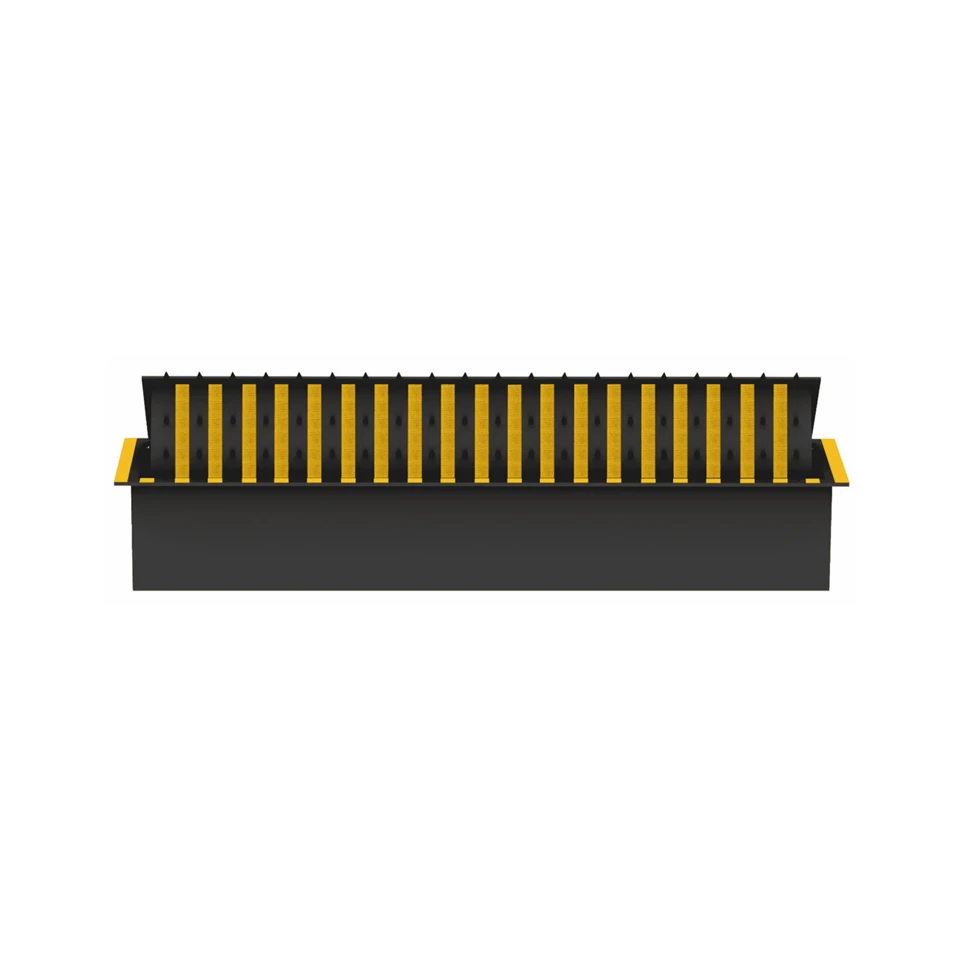

Hydraulic Road Blocker Kit

Electric Hydraulic Drive – Adopts an electric + hydraulic control system with 2 heavy-duty hydraulic struts. Delivers a lifting force of 2 tons for smooth and powerful operation.

30-Ton Heavy Load Capacity – Robust structure withstands the passage of 30-ton container trucks, meeting heavy-vehicle security needs at logistics parks and factory entrances.

3.2m Wide Efficient Interception – With a 3500mm body length and 3200mm interception width, a single lift controls both lanes, improving traffic flow and security efficiency.

Stainless Steel Tire-Piercing Spikes – Equipped with 30mm diameter, 60mm length stainless steel spikes. When raised, they provide strong physical deterrence and force interception, effectively preventing ramming by vehicles.

IP68 Fully Sealed Protection – Rated IP68 dustproof/waterproof. Fully sealed hydraulic mechanism withstands heavy rain and flooding for reliable long-term operation.

16mm Thickened Q235 Carbon Steel Panel – Built with 16mm thickened Q235 carbon steel and anti-rust coating. Offers excellent impact and corrosion resistance, with a solid weight of approx 240kg/meter.

Mechanical & Structural Specifications

Intelligent MCU Control – Built with a high-performance MCU chip for precise logic and rapid response, helping to ensure accurate execution of lifting commands and long-term system stability.

Multi‑System Intelligent Linkage – Features linkage interfaces that can connect to barrier gates, traffic lights, AB gates, and alarm systems, helping to achieve integrated and automated security control at entrances and exits.

Wide Temperature Adaptation – Offers good environmental tolerance, supporting stable operation from -35℃ to 65℃, adapting to severe cold, heat, and other climate conditions.

Flexible Wall‑Mount Installation – Designed for indoor environments with a compact wall‑mount structure (500×400×200mm), facilitating easy installation without occupying floor space.

Good Protection Design – The control box offers good waterproof and moisture‑proof performance. With a wide storage temperature range of -35℃ to 65℃, it helps protect internal electronic components from environmental erosion.

Electrical & Integration Parameters

3.7KW Powerful Hydraulic Drive – Equipped with a 3.7KW hydraulic power system, delivering strong and stable output to provide continuous core power for the road blocker's rapid lifting and heavy-duty interception

Double-Layer Steel Wire High-Pressure Hose – Uses 1/2-inch high-pressure hoses with a double-layer steel wire mesh structure, offering good pressure and burst resistance, helping to ensure safety and stability during hydraulic transmission.

Industrial-Grade Heavy-Duty Pump Station – The hydraulic pump measures 400×500×600mm and weighs approximately 80KG. The solid materials and structural design help ensure stability and durability during high-frequency operations.

Safe Low-Voltage Control Design – Uses 380V main power supply with 24V safe control voltage, helping to enhance personnel safety during operation and maintenance while ensuring efficient system performance.

Indoor Protection Installation Requirements – Designed for indoor environments with waterproof installation requirements, helping to protect internal precision hydraulic components and motors from moisture erosion and extend equipment service life.

Power & Hydraulic Specifications
